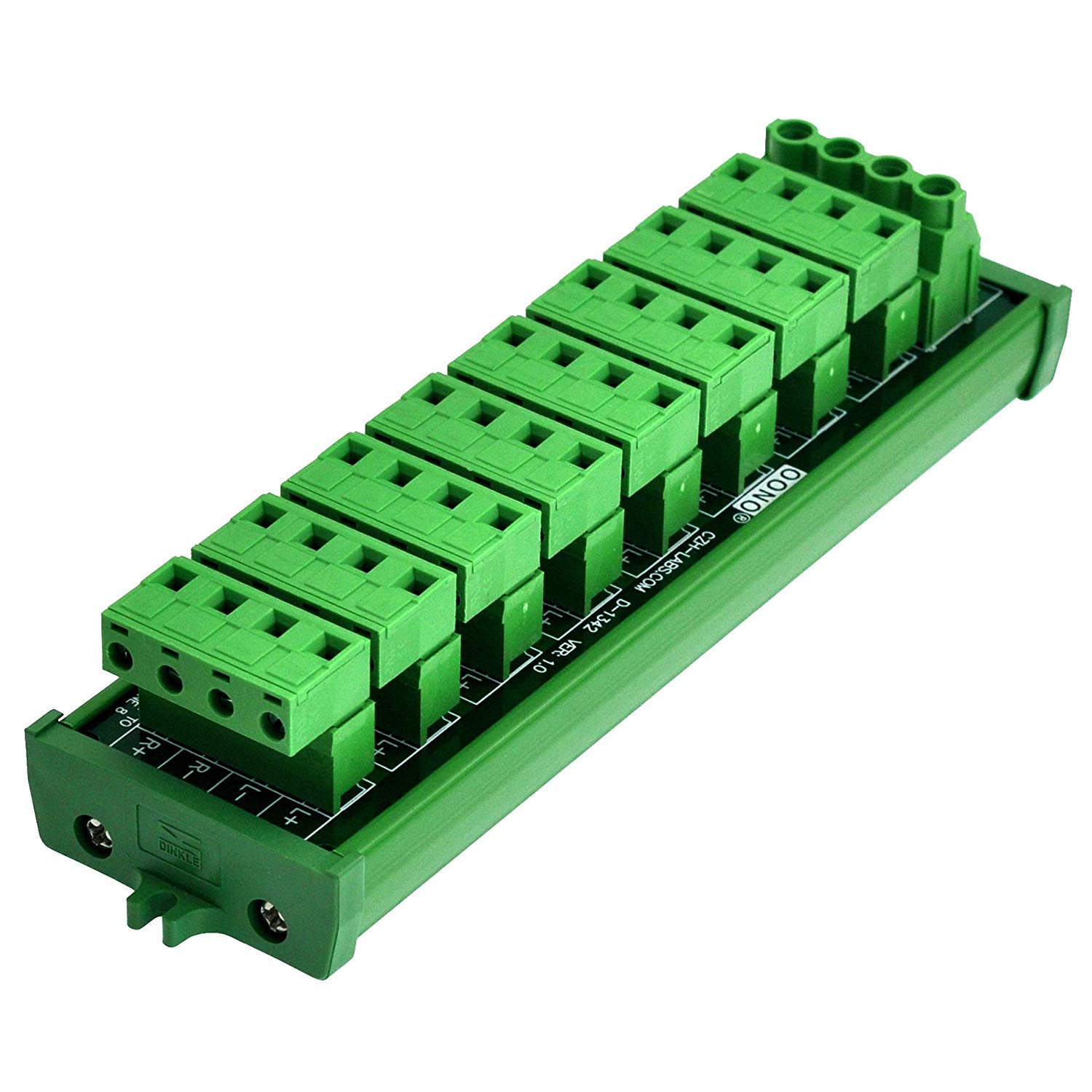

OONO Whole House Audio Stereo 8-Zone Speaker Distribution Module
4.9 (131 items)
Limited Time SaleUS$15.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218132782 | Release Date | 2026/05/03 | List Price | US$10.00 | Model Number | 218132782 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Parallel connecting block for use with Impedance matching volume controls. One Stereo Input, eight stereo outputs. Detachable connectors for easy wiring. (NOTE: Must be used with impedance matching volume controls) 2, The item for 70V / 100V constant voltage audio power amplifier, maximum input 300 Watts(per channel). 3, INPUT terminal block: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, OUTPUT ZONE 1 to 8 Terminal blocks: Pluggable screw terminal blocks, Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality fireproof nylon material mount carrier, also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
- Parallel connecting block for use with Impedance matching volume controls. One Stereo Input, eight stereo outputs. Detachable connectors for easy wiring. (NOTE: Must be used with impedance matching volume controls)
- The item for 70V / 100V constant voltage audio power amplifier, maximum input 300 Watts(per channel).
- INPUT terminal block: Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- OUTPUT ZONE 1 to 8 Terminal blocks: Pluggable screw terminal blocks, Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality fireproof nylon material mount carrier, also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
| Color | Green |
|---|---|
| Gauge | 28.0 |
| Model | MD-D1342P-1 |
| Pitch | 7.62 Millimeters |
| Voltage | 100 Volts, 70 Volts |
| Brand Name | OONO |
| Part Number | MD-D1342P-1 |
| Manufacturer | CZH-LABS |
| Material Type | Nylon |
| Mounting Type | Panel Mount |
| Connector Type | Screw |
| Number Of Poles | 16 |
| Number Of Contacts | 16 |
| Number of Positions | 8 |
